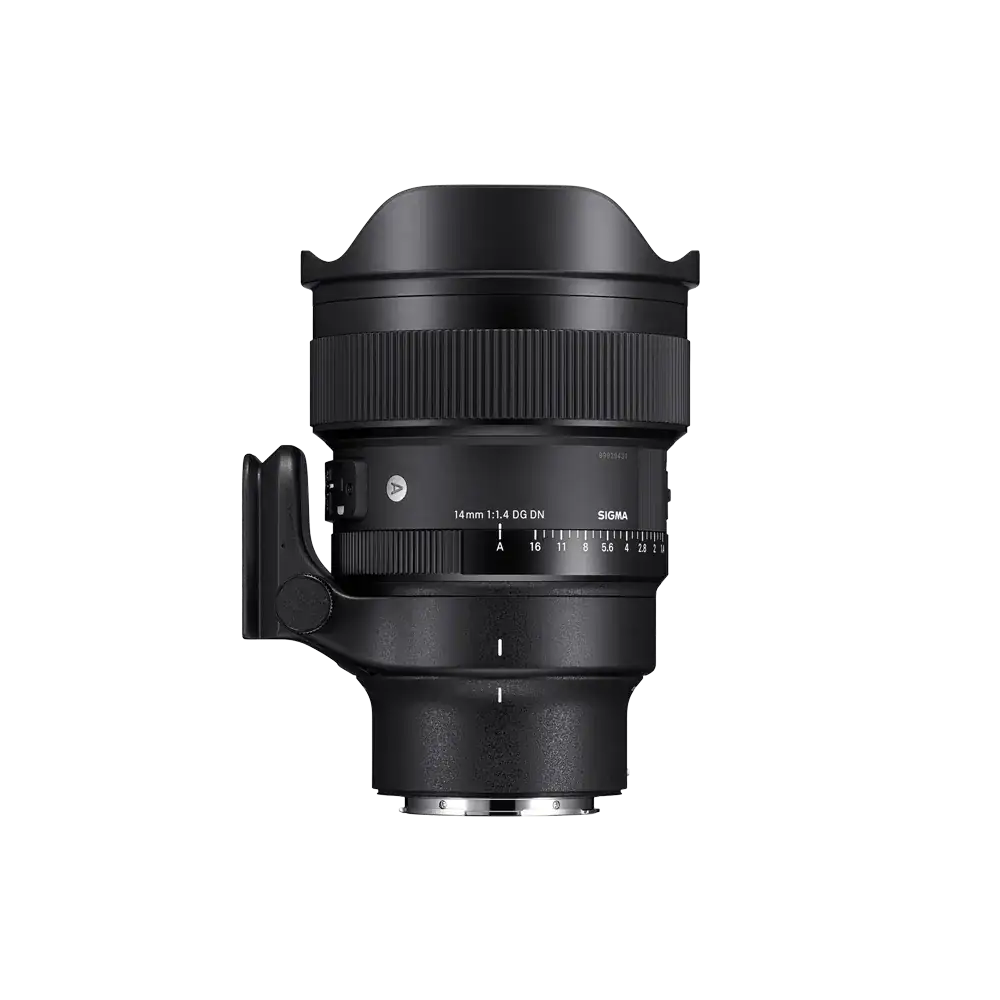

Art

14mm F1.4
DG DN

from 1 619 €

Choose a mount to see availability

Ultra-wide angle with aperture F1.4
Developed for starscape photography
Manual Focus Lock Switch (MFL)
Dust and Splash Resistandt Structure
Aperture ring
Tripod socket
Lens Heater Retainer
Rear filter Holder
Made in Japan

Buy from reseller

AWARDS

PETAPIXEL	2023
LUCIE TECHNICAL AWARDS	2023
DPREVIEW AWARDS	2023
HOT ONES	2024

Specifications

Features

Construction

Technology

Sample Images

Angle of view		Lai
Camera Type		Mirrorless
Lens Mount		L-Mount, Sony E-mount
Anduri suurus		Täiskaadriline
Ehitus		19 elements in 15 groups (3 FLD, 1 SLD, and 4 Aspherical lenses)
Vaatenurk		114.2 °
Diafragma labade arv		11 (rounded diaphragm)
Minimaalne ava		F16
Minimaalne teravustamiskaugus		30 cm
Maksimaalne suurendussuhe		1:11,9
Filtri läbimõõt		n/a
Mõõdud (läbimõõt x pikkus)		Sony E-mount L-mount φ101,4mm × 149,9mm φ101,4mm × 151,9mm
Kaal (g)		Sony E-mount L-mount 1160 g 1170 g
Väljaande number		A023
Kaasasolevad tarvikud		Cover Lens Cap LC1014-01, Tripod Socket TS-141, Protective Cover PT-41, Gide Plate GP-11, Rear Cap, Soft Case LS-451SEL
Aksessuaarid		USB dock UD-11 (L-mount only)
EAN		Sony E-mount L-mount 085126451653 085126451691
Specifications Info		* The appearance and specifications of the product are subject to change. * L-Mount is a registered trademark of Leica Camera AG. * Sony E-mount is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

Ultra wide-angle 14mm with a maximum aperture of F1.4 and outstanding optical performance

This world-first performance was achieved by applying the best of Sigma’s optical technologies, from the design to the lens manufacturing process. 19 elements in 15 groups, including 1 SLD glass element, 3 FLD glass elements, and 4 aspherical lens elements, make up a luxurious lens configuration. This allows for advanced aberration correction and a high degree of precision in the lens construction. This allows both advanced aberration correction and F1.4 brightness. In particular, sagittal coma flare, which distorts the shape of stars, has been carefully corrected, and even at the widest aperture, the lens delivers high image reproducibility right to the periphery of the image. Ghosting and flare are also thoroughly addressed through both optical design and coatings. This allows for clear, crisp shooting of starry sky and night scenes. Optimized for starscapes, which require extremely high performance, this lens delivers images that exceed expectations in any scene, including landscapes, architecture snapshots, portraits, and indoor photography.

The largest class φ79mm aspherical lens element

Abundant functions and accessories to support starscape photography

The 14mm F1.4 DG DN | Art is equipped with a wealth of features to support starscape photography. This fully backs up the fun of starscape photography.

Tripod Socket

Includes a detachable tripod socket compatible with Arca-Swiss type. As the 14mm F1.4 DG DN | Art is heavier on the front side, attaching the tripod socket helps it mount on a tripod in a more stable way. The shape is designed to prevent interference even when using the lens heater.

MFL (Manual Focus Lock) Switch

When the MFL switch is set to “LOCK”, the focus ring operation will be disabled. It prevents focus shift caused by unintentional operation of the focus ring. This is useful for long time exposure photography, etc., where the focus should be fixed.

Lens Heater Retainer

A lip at the front of the lens prevents the lens heater* from protruding into the front of the lens and causing vignetting on the periphery of the screen.

*A belt-shaped heater that is wrapped around the lens to prevent condensation from forming inside the lens when the temperature drops.
*Lens heater is not included.

Rear filter Holder

A rear filter holder is provided as standard equipment at the lens mount for attaching a sheet-type rear filter. A lock mechanism is also provided to prevent the filter from falling out.

Special front cap with locking mechanism and filter slots

ncludes a cover-type front cap with locking mechanism. It also has newly developed filter slots that can hold two rear filters depending on the application. The cap is specially designed for the 14mm F1.4 DG DN | Art to protect the sheet filters from scratches and dirt while ensuring that they are not mistakenly taken out or forgotten.

Signature Art line features and high build quality

In addition to functions specifically designed for shooting starscapes, the lens is equipped with various functions to assist in shooting, including an AFL button to which any function can be assigned and an aperture ring. The body is dust and splash resistant, and the frontmost surface of the lens is coated with a water and oil repellent coating, so you can shoot outdoors in harsh environments with peace of mind. The HLA (High-response Linear Actuator) enables high-speed, quiet, and highly accurate autofocusing. In order to maintain performance while supporting a lens with a large aperture, the lens has a robust internal structure and uses lightweight materials such as polycarbonate TSC (Thermally Stable Composite), which has a thermal shrinkage rate equivalent to that of aluminum, and magnesium in appropriate locations to reduce weight while ensuring robustness. The lens body is built with the high build quality of the Art line specifications, allowing the user to fully enjoy the unique performance of the lens in any environment, including shooting starscapes.

*1 When turned ON at the position A, the iris ring is locked at A. When turned ON at a position other than A, it is locked within the range between the maximum to minimum apertures and will not engage at the position A.
*2 Only on compatible cameras. Available functions may vary depending on the camera used.
*3 The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

HLA (High-response Linear Actuator)

HLA is SIGMA's proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).

Super Multi-Layer Coating

SIGMA's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current SIGMA range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, SIGMA's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coatin

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Aperture ring

Aperture ring, designed to help users work intuitively

Aperture ring click switch

Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.

Aperture ring lock switch

A ring lock system to prevent from unintended movement of the aperture ring during shooting.

AFL button

the AFL button can be assigned with various functions widens the range of operations available on the lens.

MFL switch

The MFL (Manual Focus Lock) switch disengages the focus ring on the lens. After manually focusing the lens to the desired position, set the MFL switch to 'LOCK' in order ]to disengage the focus ring.
This prevents the focus of the lens from being moved by accident (such as when attaching a lens heater or changing the composition) and causing out of focus images. The focus ring can still be rotated but will have no effect.
* Please note that some camera bodies may continue to AF even if the MFL switch is set to 'LOCK', or allow AF temporarily even when the camera has been set to MF, and shift the focus when the MFL switch is set to 'LOCK'.

Rear filter holder

The rear filter holder allows the attachment of a sheet-type filter to the rear part of the lens.
Trace the shape on a sheet filter using the guide plate and cut it out for use.

Lens Heater Retainer

The Lens Heater Retainer is a protruding lip at the front of the lens. When the lens is used in conjunction with a lens heater, the Lens Heater Retainer stops the heater from over hanging the front element and causing vignetting. Lens heaters prevent condensation and night dew during nightscape photography such as astrophotography.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Lens construction: 19 elements in 15 groups (3 FLD, 1 SLD, and 4 aspherical elements)

Compatible with high-speed autofocus

Support DMF and AF+MF

Compatible with AF assist (Sony E-mount only)

TRIPOD SOCKET TS-141 supplied

Special front cap with locking mechanism and filter slot: COVER LENS CAP LC1014-01(NEW)

Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)

Designed to minimize flare and ghosting

Every single lens undergoes SIGMA’s proprietary MTF measuring system

11-blade rounded diaphragm

High-precision, durable brass bayonet mount

NEW VISION. EXPANDING POSSIBILITIES.

The world’s first and only* lens that combines an ultra-wide angle of 14mm with a maximum aperture of F1.4.
All for the best starscape photography.

The stars in the sky are a source of inspiration for viewers. On the other hand, the starry sky is a very demanding subject for a wide-angle lens, with its numerous tiny point light sources spread over the entire image. The 14mm F1.4 DG DN | Art is the world’s widest F1.4 single focal length lens*, born from our engineers’ passion for capturing the widest, brightest, highest-resolution, and most captivating starry sky possible. Thanks to Sigma’s latest technology, the lens combines an ultra-wide angle of 14mm with a maximum aperture of F1.4. In addition, Sigma’s lens technology has achieved high optical performance with thorough correction of sagittal coma flare, specialized functions to support starry landscape photography, and high-speed AF with HLA (High-response Linear Actuator) linear motor.
The Milky Way stretching across the night sky, twinkling stars emerging over ridgelines―The 14mm F1.4 DG DN | Art can make this a reality as a pictorial image that surpasses the actual photographic experience. Its proven ability in shooting starscapes will provide new possibilities for visual expression and enjoyment in all scenes, including daytime landscapes, architecture, and indoor photography in dark and confined spaces.

*Excluding fisheye lenses, as interchangeable lenses for mirrorless cameras and SLR cameras (as of June, 2023 by Sigma)
