Art

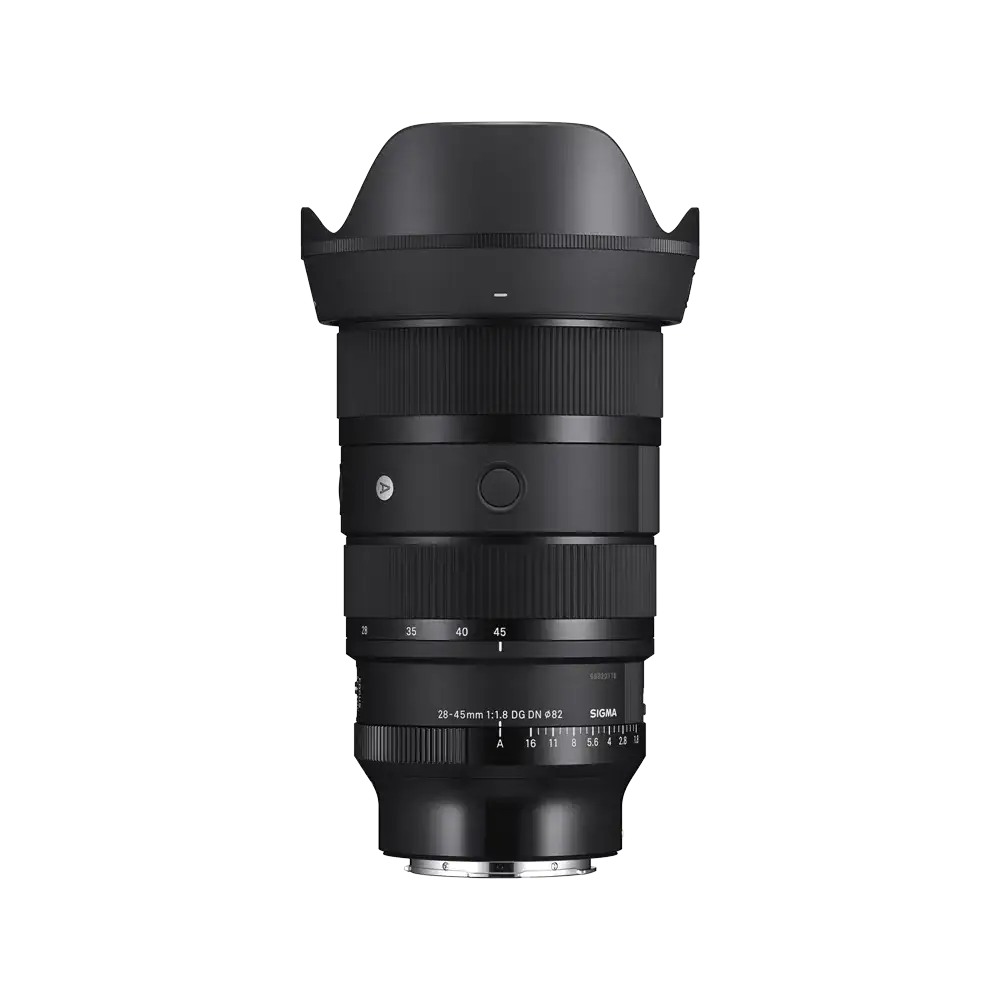

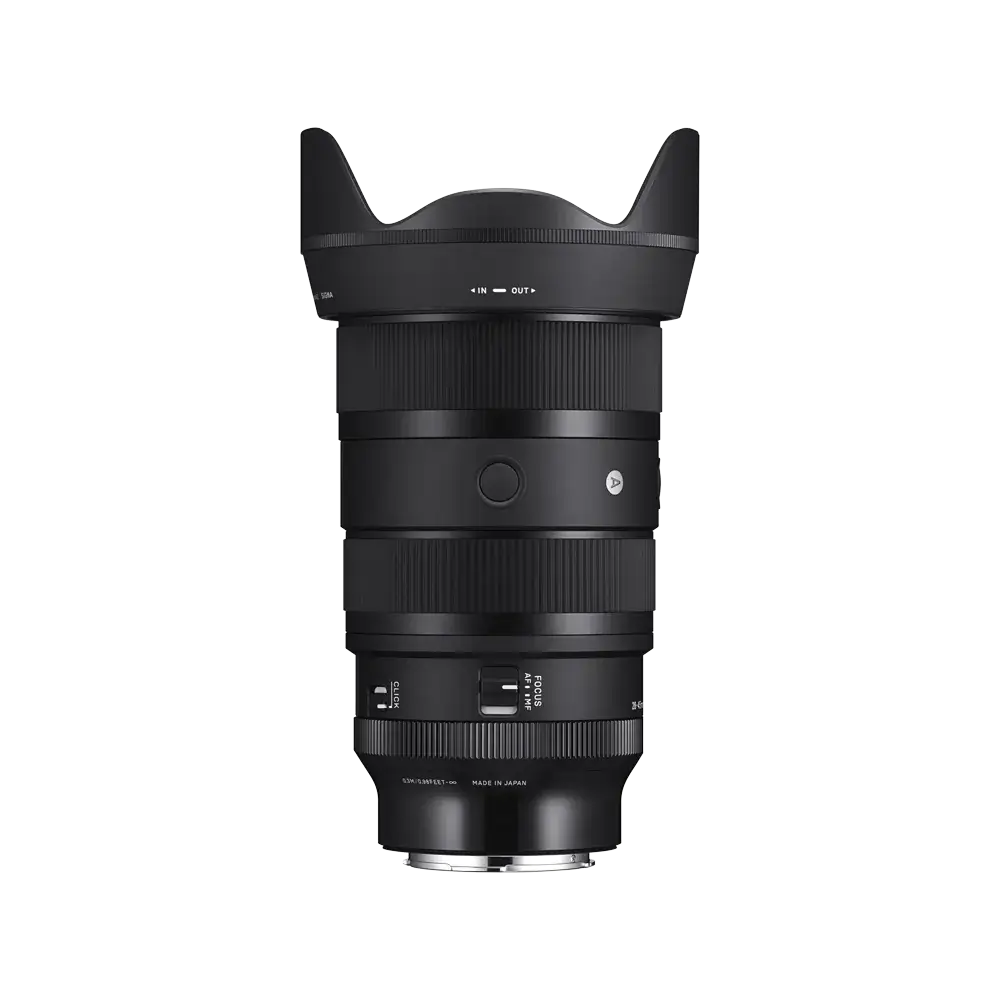

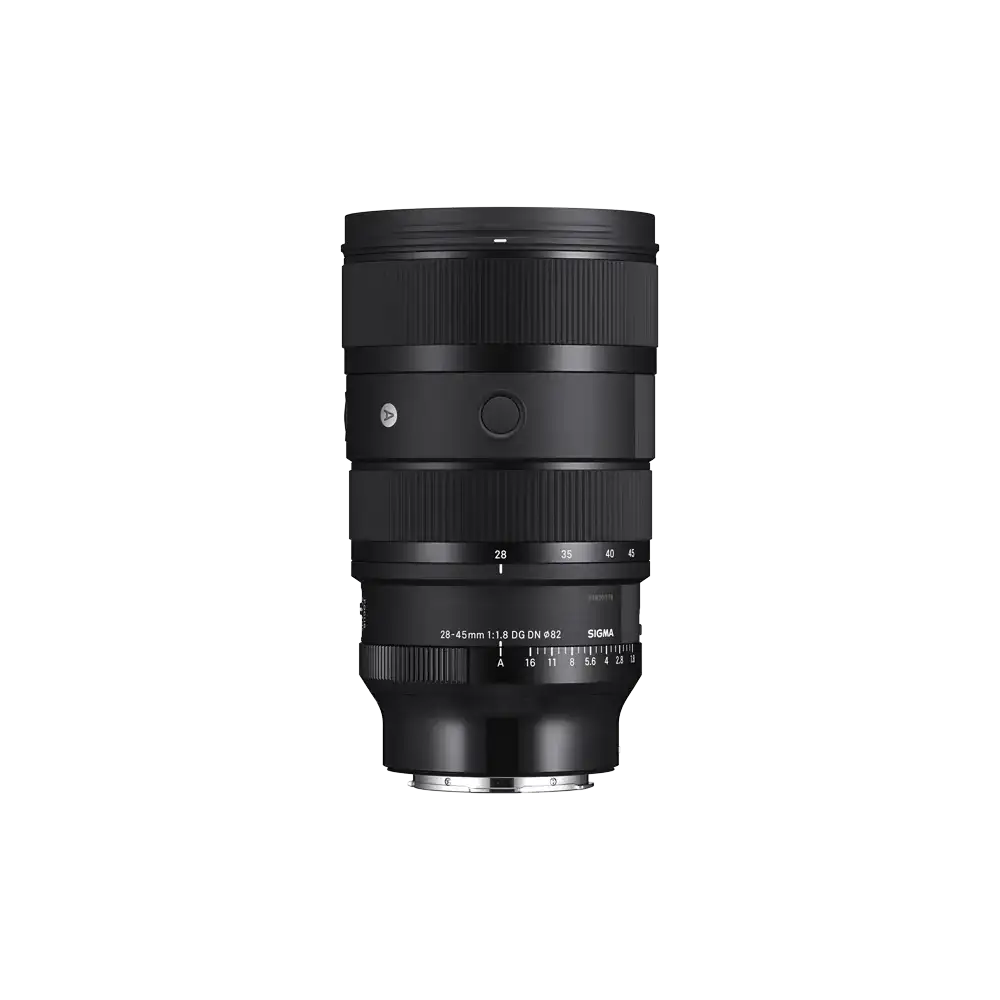

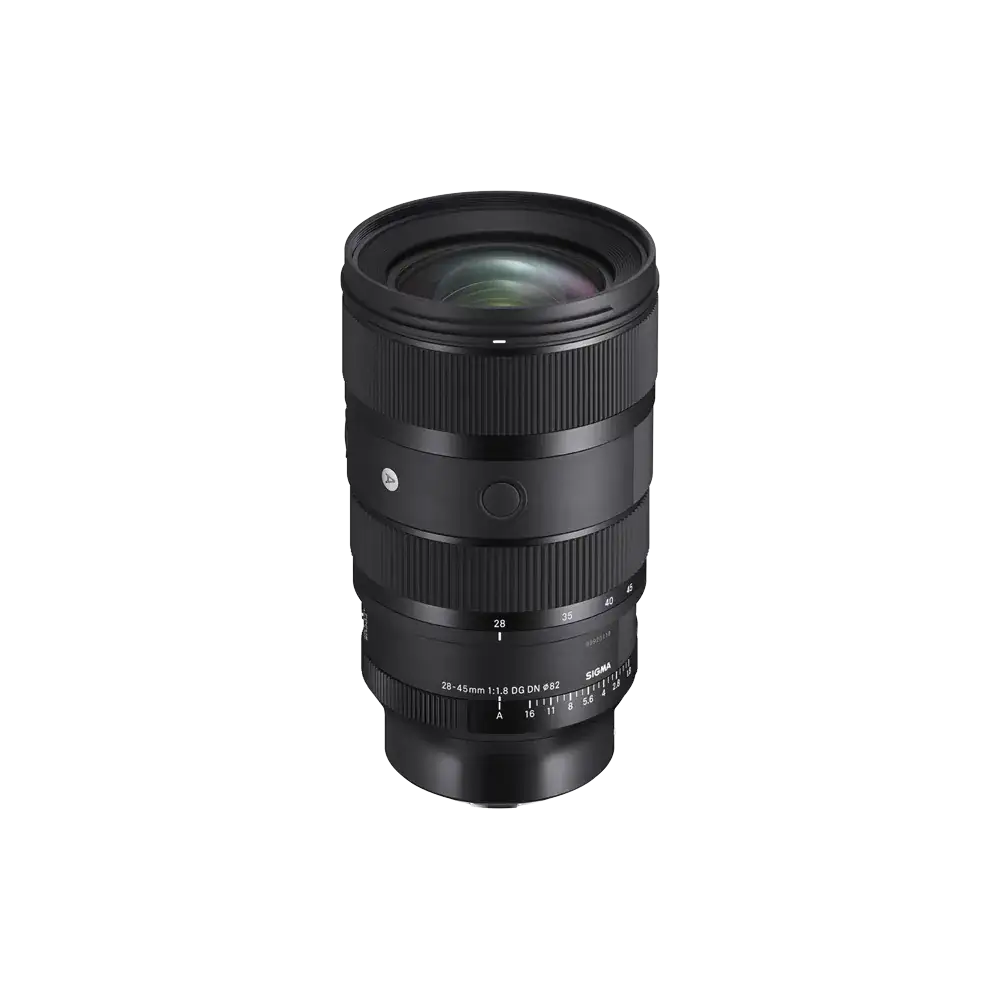

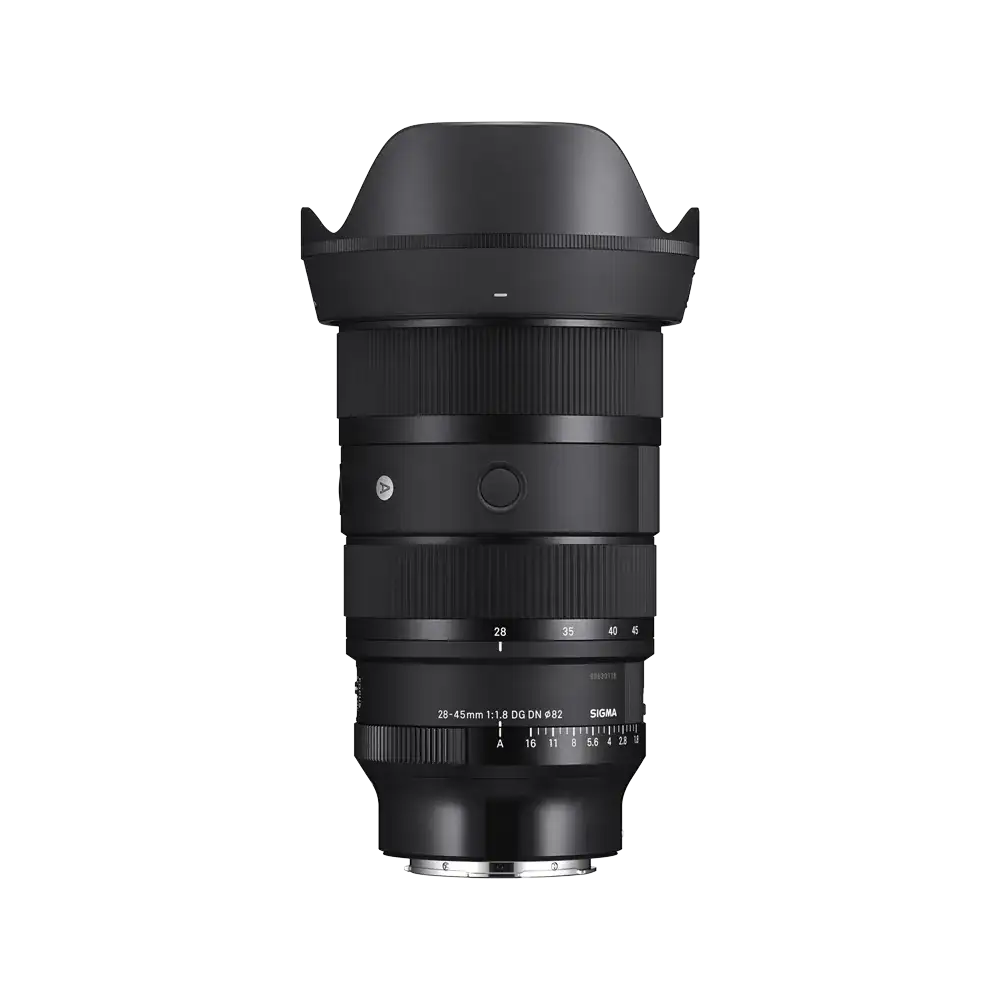

28-45mm F1.8
DG DN

from 1 529 €

Choose a mount to see availability

World's first* full-frame, F1.8 maximum aperture zoom lens
Optical performance comparable to that of a prime lens
Inner zoom mechanism
Minimum focusing distance of 30cm
Dust and splash-resistant structure
HLA (High-response Linear Actuator) focus motor
Water and oil repellent front coating
Designed to minimize focus breathing
Designed to minimize flare and ghosting
Equipped with two AFL buttons
Aperture ring with de-click function
Compatible with Lens Aberration Correction**
Made in Japan

*as of June 2024 by SIGMA
**Function available on supported cameras only. Available corrections / functionality may vary depending on camera model.

Buy from reseller

AWARDS

EISA

2024

Specifications

Features

Construction

Technology

Sample Images

Angle of view		Standard
Camera Type		Mirrorless
Lens Mount		L-Mount, Sony E-mount
Anduri suurus		Täiskaadriline
Ehitus		18 elements in 15 groups, (5 FLD, 3 aspherical elements)
Vaatenurk		75.4-51.3°
Diafragma labade arv		11 (rounded diaphragm)
Minimaalne ava		F16
Minimaalne teravustamiskaugus		30cm
Maksimaalne suurendussuhe		1:4 at f=45mm
Filtri läbimõõt		82mm
Mõõdud (läbimõõt x pikkus)		Sony E-mount L-mount φ87,8mm × 151,4mm φ87.8mm × 153,4mm
Kaal (g)		Sony E-mount L-mount 950g 960g
Väljaande number		A024
Kaasasolevad tarvikud		Lens hood LH878-06, Front Cap LCF-82 Ⅲ, Rear Cap LCR , Lens case LS-612SEL
Aksessuaarid		USB Dock UD-11 (L-mount), SIGMA WR CERAMIC PROTECTOR 82mm, SIGMA WR PROTECTOR 82mm, SIGMA WR UV FILTER 82mm, SIGMA WR CIRCULAR PL FILTER 82mm
EAN		Sony E-mount L-mount 085126612658 085126612696
Specifications Info		* L-Mount is a registered trademark of Leica Camera AG. * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

The world's first* full-frame, F1.8 maximum aperture zoom lens

Sigma has successfully developed the world's first full-frame zoom lens with a maximum aperture of F1.8. The Sigma 28-45mm F1.8 DG DN | Art incorporates an inner zoom mechanism, a minimum focusing distance of 30cm across the entire zoom range, and a filter size of φ82mm. Despite its advanced feature-set, the lens weighs less than 1kg, making it a portable and versatile option for either hand-held shooting or a gimbal setup.

*As of June 2024 by Sigma

Constant maximum aperture of F1.8

Once a privilege reserved only for prime lenses, the maximum F1.8 aperture allows full-frame camera users to expose hand-held in low light and produce beautiful bokeh, while enjoying the flexibility of a zoom. This unique optical achievement has been created through Sigma's accumulated optical design experience and advanced production technology at the company’s sole production base in Aizu, Japan.

Practical and stable inner zoom

Employing an inner zoom mechanism, the overall length of the lens remains constant when the focal length or focus distance changes. This means the lens is easy to use when shooting hand-held, highly stable when mounted on a tripod or gimbal, and more resistant to dust and water contamination.

Consistent close focus

The minimum focusing distance is a constant 30cm across the entire zoom range, with a maximum magnification ratio of 1:4 at the telephoto end, providing excellent close-up shooting capabilities. As well as offering precise focus in confined spaces, the lens can therefore be used close to a subject without affecting sharpness when using the zoom.

Premium build at a lighter weight

By rights, such a fast zoom should be big and heavy, but while the lens’s rigidity and durability protect its sophisticated optical design, this is achieved at a weight of less than 1kg. What’s more, this reliable photographic tool uses a versatile filter size of φ 82mm, meaning no compromise in portability or convenience.

Excellent optical performance comparable to that of a prime lens

With each optical aberration meticulously corrected throughout the zoom range, the Sigma 28-45mm F1.8 DG DN | Art rivals prime lenses for clarity and definition. Thanks to its advanced coatings, the lens produces clear images, even in backlit environments, while focus breathing is thoroughly suppressed, bringing expressive power to film-makers and photographers.

The pinnacle of optical quality in a zoom

Through the effective arrangement of 5 SLD elements and 3 aspherical elements, aberrations are rigorously corrected. Axial chromatic aberration, which is particularly noticeable with large-aperture lenses, has been thoroughly suppressed, and the lens delivers clear images with minimal coloration, from sharply focused details to large, smooth bokeh.

Suppression of focus breathing

When using regular lenses, the angle-of-view can change as focus moves from near to far, affecting precise composition. With the Sigma 28-45mm F1.8 DG DN | Art this focus breathing is suppressed, enabling natural focus pulls when shooting video.

Minimal flare and ghosting

Flare and ghosting, which reduce image quality, have been largely eliminated using advanced simulation technology, ensuring the lens renders rich, high-contrast results in all conditions. In addition, in order to keep flare and ghosting to a minimum, the lens uses Sigma’s Nano Porous Coating and Super Multi-Layer Coating, producing superior resistance to backlighting and enabling clear, saturated images in all lighting conditions.

High-speed AF speed and innovative features

The Sigma 28-45mm F1.8 DG DN | Art delivers a range of professional features as impressive as its outstanding optical performance. With high-speed and adaptable AF, a durable weather-resistant structure, a de-clickable aperture ring, smooth manual focusing and on-barrel AFL buttons, all features combine to create a versatile photographic tool capable of responding to any situation.

Faster focus with a linear motor

The lens’s AF mechanism uses an HLA (High-response Linear Actuator) to combine accelerated focusing speed with exquisite precision. And because the motor is near-silent it allows video recording without noise.

Precise and comfortable manual focusing

To deliver delicate and accurate manual focus, the lens employs a by-wire driven focus ring with optimum torque setting, high resolution and an adjustable rotation angle between 90° and 720°*. This allows film-makers to pull focus with organic smoothness, and photographers to focus manually with outstanding accuracy.

* Only for L-Mount, and with compatible cameras.

Aperture ring refinements

The lens is equipped with an aperture ring as well as an aperture ring click switch and an aperture ring lock switch, allowing for aperture operation suitable for various shooting situations.

Equipped with two AFL buttons

Located on the side and on top of the barrel, two customizable* AFL buttons can be easily reached in either horizontal or vertical shooting positions.

*Assignment of functions is limited to supported cameras and assignable functions vary depending on the camera.

Built to withstand the elements

In addition to a dust- and splash-resistant body*, the frontmost surface of the lens is coated with a water- and oil-repellent coating so that it can be used safely even in harsh outdoor environments.

*The product is designed to be dust- and splash-resistant but is not waterproof. When using the lens near water, etc., take care not to allow large amounts of water to splash on it. If water gets inside the lens, it may cause a major malfunction and render the lens unrepairable.

Includes locking petal-type hoodBuilt to withstand the elements

A petal-type hood is included to shield the lens from light. It has a locking mechanism for secure attachment and can be reversed for easier storage.

Inner Zoom

The lens incorporates an inner zoom. With their unchanging barrel length, these lenses also enhance balance and stability for the photographer. Furthermore, since the front of the lens does not rotate, polarizing filters can be used with extra convenience.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

HLA (High-response Linear Actuator)

HLA is SIGMA's proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).

Nano Porous Coating

The super multi-layer coating is combined with SIGMA's unique coating technology "NPC (Nano Porous Coating)". The lens has been designed to be less susceptible to strong incident light such as backlight.
"NPC (Nano Porous Coating)" incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

Super Multi-Layer Coating

SIGMA's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current SIGMA range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, SIGMA's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Aperture ring

Aperture ring, designed to help users work intuitively

Aperture ring click switch

Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.

AFL button

The AFL button can be assigned with various functions widens the range of operations available on the lens.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Linear focus / Non-linear focus (for L-Mount only）

A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With "non-linear focus," the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Compatible with high-speed autofocus

Supports DMF and AF+MF

Compatible with AF assist (for Sony E-mount only)

Petal-type hood with lock LH878-06

Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)

Designed to minimize flare and ghosting

Mount Conversion Service available

THE WORLD'S FIRST* F1.8 FULL-FRAME MIRRORLESS ZOOM

The Sigma 28-45mm F1.8 DG DN | Art is the world's first full-frame zoom lens with a constant maximum aperture of F1.8, delivering sharpness and clarity comparable to that of a prime lens.

Already the pioneer of unique, large-aperture zoom lenses including the Sigma 18-35mm F1.8 DC HSM | Art and the Sigma 24-35mm F2 DG HSM | Art, Sigma introduces another fast, portable and versatile tool to its Art lineup.

In addition to its unprecedented brightness, the Sigma 28-45mm F1.8 DG DN | Art delivers sharpness and clarity comparable to that of a prime lens throughout its entire zoom range. Also equipped with fast and precise AF and superior operability, this innovative optic turns a new page in the history of zoom lenses and their creative possibilities. It is a lens that will inspire full-frame film-makers, while bringing unparalleled versatility to stills photographers.

* As of June 2024 by Sigma
